Soft66QR
under 2MHz -> direct sampling
2MHz to 30MHz -> up converter
Adding Orange Pi zero makes Soft66IP server.(option)
dimention 76mmx35mmx104mm
ORDER PAGE $68USD
you need suitable antenna with SMA connector.
windows or linux PC.
installing HDSDR or SDR#

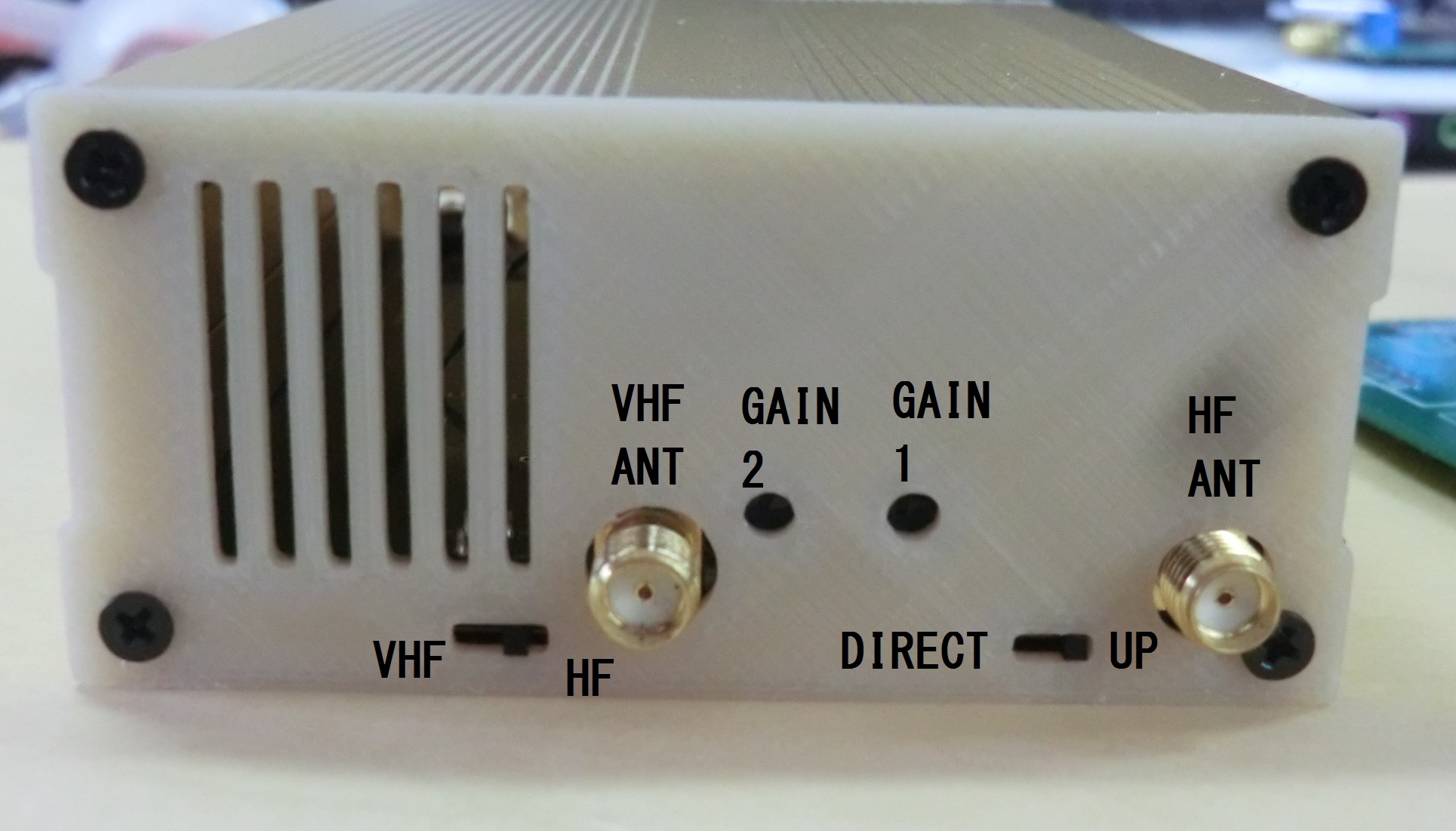

| 0.1MHz to 2MHz recieving | connect antenna to HF ANT. slide switch to DIRECT and HF. tune RF gain 2 |
HDSDR direct sampling set Q channel |
| 2Mhz to 30MHz recieving | connect antenna to HF ANT. slide switch to UP and HF tune RF gain 1 |
HDSDR set disable +50MHz for target frequency |
| over 50MHz | over
50MHz connect antenna to VHF ANT slide switch to VHF
|
